Automatically capture snapshot on high memory usage

You can instruct the profiler to automatically capture memory snapshot when used memory reaches the specified threshold.

When used memory constantly increases, this often means there's a memory leak. Based on this concept, this feature greatly simplifies the detection of such situations in e.g. long-running applications such as servers. One of the benefits is that, after being triggered, the feature requires no further human interaction.

Please also consider the ability to dump memory on OutOfMemoryError. The JVM's internal lightweight dumping algorithm is used. This algorithm is specially designed to work in low memory conditions, when the JVM general purpose profiling interface JVMTI used by profilers may fail due to low resources.

To toggle this feature, connect to the profiled application and click toolbar button.

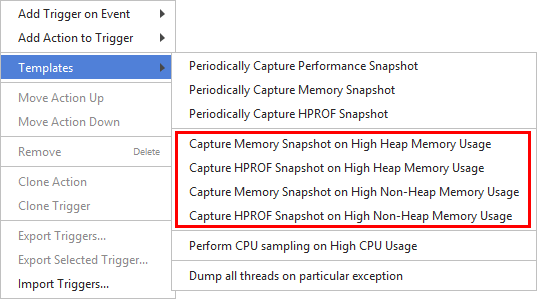

Use corresponding template menu to add the trigger and actions, then edit parameters if necessary:

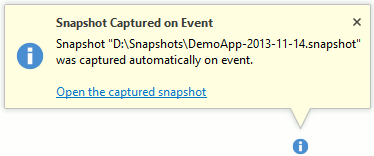

Then, if the threshold is reached, a memory snapshot will be created, a notification will be shown in the UI and the feature will deactivate. You can enable it again afterwards.

How to trigger the snapshots from the start

Use startup option used_mem or used_mem_hprof.

How to add the trigger with the help of the profiler API

Export the template using corresponding popup menu item, and pass it to API method com.yourkit.api.controller.v2.Controller.setTriggers()
