Monitor wait tree - By thread

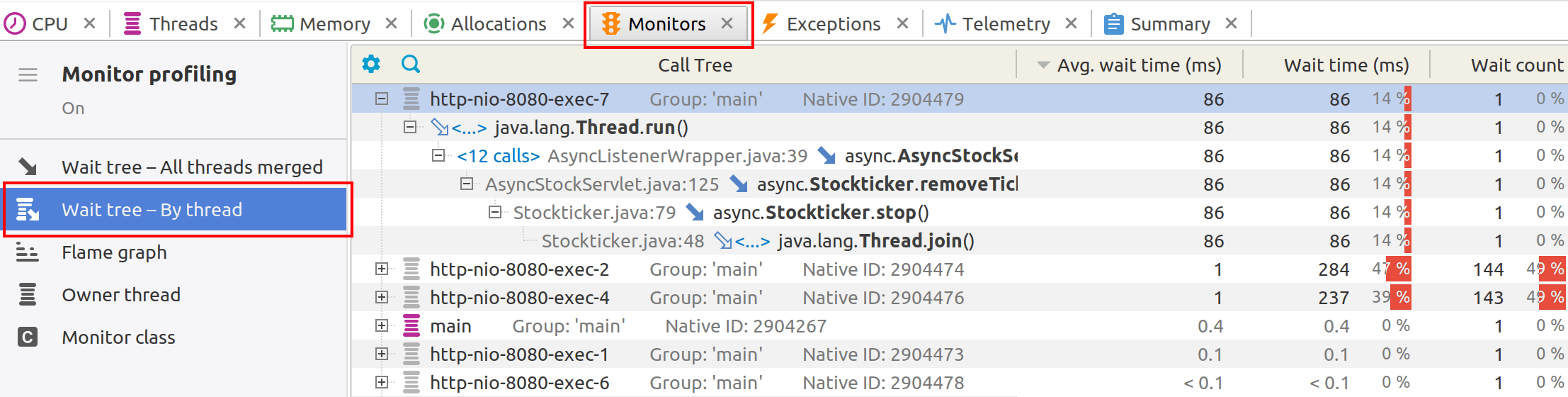

Monitors wait tree - By thread view presents a top-down call tree for each application thread individually. This view provides detailed information about the wait time and call count for methods involved in monitor waits within the context of each thread, enabling you to analyze wait behavior specific to individual threads.
Filters
Monitors wait tree respects filter settings
and collapses filtered methods.
Filtered methods are marked with non-filled arrow icon
,
and there is <...>
hyperlink that allows you to expand hidden content.
You can undo the expansion by using the Ctrl+Z shortcut or from popup menu.
Actions
The following actions are available in the popup menu:
- Lines can be copied by using File | Copy (Ctrl+C).
- File | Export to... (Ctrl+S) - exports view to different formats.
- Tools | Open in IDE (F7) - opens method declaration in IDE editor. See IDE integration.
